Precision Cylindrical Grinding Services
Precision grinding is a form of high-accuracy grinding that has applications in various industries. This technology uses an abrasive spinning wheel to remove particles from the workpiece’s inner or outer diameter, changing its size, shape, and surface finish. Workpiece materials include metals, ceramics, plastics, rubber, and composites. Learn more about Nation Grinding’s precision cylindrical grinding services, including compatible materials and applications.
What Is Precision Cylindrical Grinding?

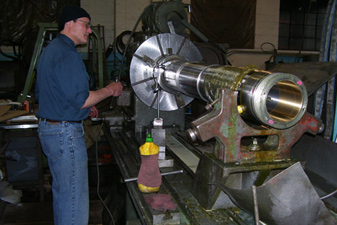

Precision cylindrical grinding is a form of precision grinding that works by spinning rotationally symmetrical workpieces along a central axis and using a rotating grinding wheel to shave away material. External cylindrical grinding shapes the workpiece’s outer diameter (OD), while internal cylindrical grinding makes precise holes and interior contours in the inner diameter (ID).
Precision cylindrical grinding focuses on accuracy and is essential in industries with a small error margin. For example, in the automotive, aerospace, and military industries, the process grinds conical, end, and outer faces of shaft components. In the medical industry, precision cylindrical grinding is crucial to producing smart medical devices and tools.
What Materials Can Be Ground Using the Precision Cylindrical Grinding Method?
At Nation Grinding, our experts can assess your needs to provide customized precision components, from prototypes to small batches to large production runs. We work with ferrous metals, nonferrous metals, tool steel, aluminum alloys, stainless steel, ceramics, aerospace-grade alloys, tungsten carbide, and engineering plastics. Here is a full list of the materials we use in our precision cylindrical grinding services:
- Aluminum
- Brass
- Beryllium
- Bronze
- Carbide
- Cast Iron
- Cobalt
- Copper
- Gold
- Incomel
- Lead
- Magnesium
- Molybdenum
- Nickel
- Platinum
- Silver
- Steel
- Stainless Steel
- Tin
- Tantalum
- Titanium
- Tungsten
- Zinc
- Zirconium
- Ceramics
- Plastics
- Rubber
- Composites
Advantages of Precision Cylindrical Grinding
Precision cylindrical grinding machines are crucial to achieving tight tolerances and precise specifications required by many industries. Here are some key advantages that come with using our precision cylindrical grinding services.
24/7 Operation
Our precision CNC cylindrical grinding machines can run 24/7, 365 days a year, only stopping for regular maintenance. One employee can oversee multiple machines at once, cutting down on labor costs and boosting productivity. We pass this efficiency onto our customers in the form of affordable costs and quick turnaround times.
Fast, High-Volume Production
Because our CNC grinding machines operate constantly and automatically, they can achieve high efficiency and output to meet any production volume demand.
Accuracy
The accuracy of our cylindrical grinders ensures that products are produced without errors or inconsistencies. The automotive and aerospace industries in particular have very slim margins for error. A slight inaccuracy in components may lead to catastrophic consequences. Precision cylindrical grinding reduces material waste, saves time, and enhances accuracy. Machines can even be modified to achieve the exact requirements you’re looking for.
Capabilities and Applications of Precision Cylindrical Grinding Services
At Nation Grinding, our cylindrical grinding capabilities mean we can handle workpieces up to 12” in diameter and 60” long. We can grind parts with as low as a 0.0001-inch tolerance whether they are large components used in the oil and gas industry or small, intricate parts for surgical instruments.
Applications
Several key industries rely on our cylindrical grinding machine services to make precise cylindrical components. Some of these applications and industries include:
- Aerospace Components
- Scientific Adjustments
- Electronic Parts
- Automotive Parts
- Printing Equipment
- Transportation Parts
- Medical Devices
Precision Grinding Solutions From Nation Grinding
Cylindrical grinding services are essential for industries with a low margin for error. Nation Grinding utilizes cutting-edge machines to deliver precise, high-quality products on time. We offer customized solutions depending on your project’s specifications in terms of size, materials, and finish. Request a quote to start your custom solution today.
Precision Cylindrical Grinding Capabilities
- Precision Grinding Process
-
- Angle Grinding
Contour
Deep Hole Grinding
External & Outside Diameter
Flat Grinding
High Speed Grinding
Internal and Inside Diameter
Multiple Diameters - Outside Diameter
Polishing
Precision Grinding
Radii Grinding
Taper Grinding
Wet Grinding
- Angle Grinding
- Material - Metals
-
- Aluminum
Beryllium
Brass
Bronze
Carbide
Cast Iron
Colbalt
Copper - Gold
Inconel
Lead
Magnesium
Molybdenum
Nickel
Platinum
Silver - Stainless Steel
Steel
Tantalum
Tin
Titanium
Tungsten
Zinc
Zirconium
- Aluminum
- Material - Others
-
- Ceramic
Composites - Plastic
Rubber
- Ceramic
- Finish
- Hard Chrome, Coatings
- Taper
- 30, 40, 50
- Part Inside Diameter
- .200 to 50 in (5 to 1270 mm)
- Part Outside Diameter
- Up to 30 in (762 mm)
- Part Length (ID)
- Up to 72 in (1829 mm)
- Part Length (OD)
- Up to 153 in (3886 mm)
- Lifting Capacity
- Up to 3 tons
- Roundness
- .00050 in (.0127 mm)
- Surface Finish
- R8
- Concentricity
- .0002 in (.0051 mm)
- Tolerance (+/-)
- .0002 in (.0051 mm)
- Repair Services
-
- ID, OD Repair of Shafts
Cylinders, Pumps/Printer Rolls
Chrome Plating Repair - Plasma Spray Repair
Spindle Repair
- ID, OD Repair of Shafts
- Desired Coatings
-
- Metals
Ceramics
Thermoplastics
Epoxies - HVOF Tungsten Carbide
95 MXC Armacor
60 T Stainless Steel
- Metals
- Typical Coating Applications
-
- Spindle Repair
Wire Drum Fabricating / Rebuilding
Pump Castings / Impellers
Pump Shafts / Sleeves - Paper Rolls
Roll Rebuilding
Gas & Steam Turbine Components
- Spindle Repair
- Additional Services
-
- CAM
Q.C. Reports - Reverse Engineering
Spindle Grinding
- CAM
- Quality Control Inspections
-
- Optical Profilometer
Standard Metrology Instruments
Micrometers
Slide Calipers
Height Gages
Depth Gages - Indicators
Bore Gages
Squares / Angles
Gage Blocks
Granite Surface Plates
Rotary Tables
- Optical Profilometer
- Production Volume
- Specialty Production Shop, Prototype, Large Scale Production Volume Run
- Typical Lead Time
- 5 to 10 work days
Additional Information
- Industry Focus
-
- Aerospace
Agricultural
Auto/Truck/Transportation
Marine
Medical
- Military
Mining
Pulp and Paper
Spindle
Wire
- Aerospace
- Intended Application
- Machinery, Mold Grinding, Tooling/Fixtures
- Industry Standards
- ISO Compliant, Mil-Spec
- File Formats
